SOKTL150R4

S4B Type 4 Safety Light Curtains simplify installation and maximize uptime with advanced features that reduce nuisance trips, speed troubleshooting, and support flexible system design. Even with all these features, the S4B remains a reliable, backward-compatible, cost-efficient machine guarding solution for a wide variety of industrial applications.

14- and 30-millimeter resolution options offer safety protection for different applications

360-degree status indication reduces downtime by quickly alerting users to operational status, including a blocked light curtain or weak beam, enabling timely maintenance of a misaligned or dirty window

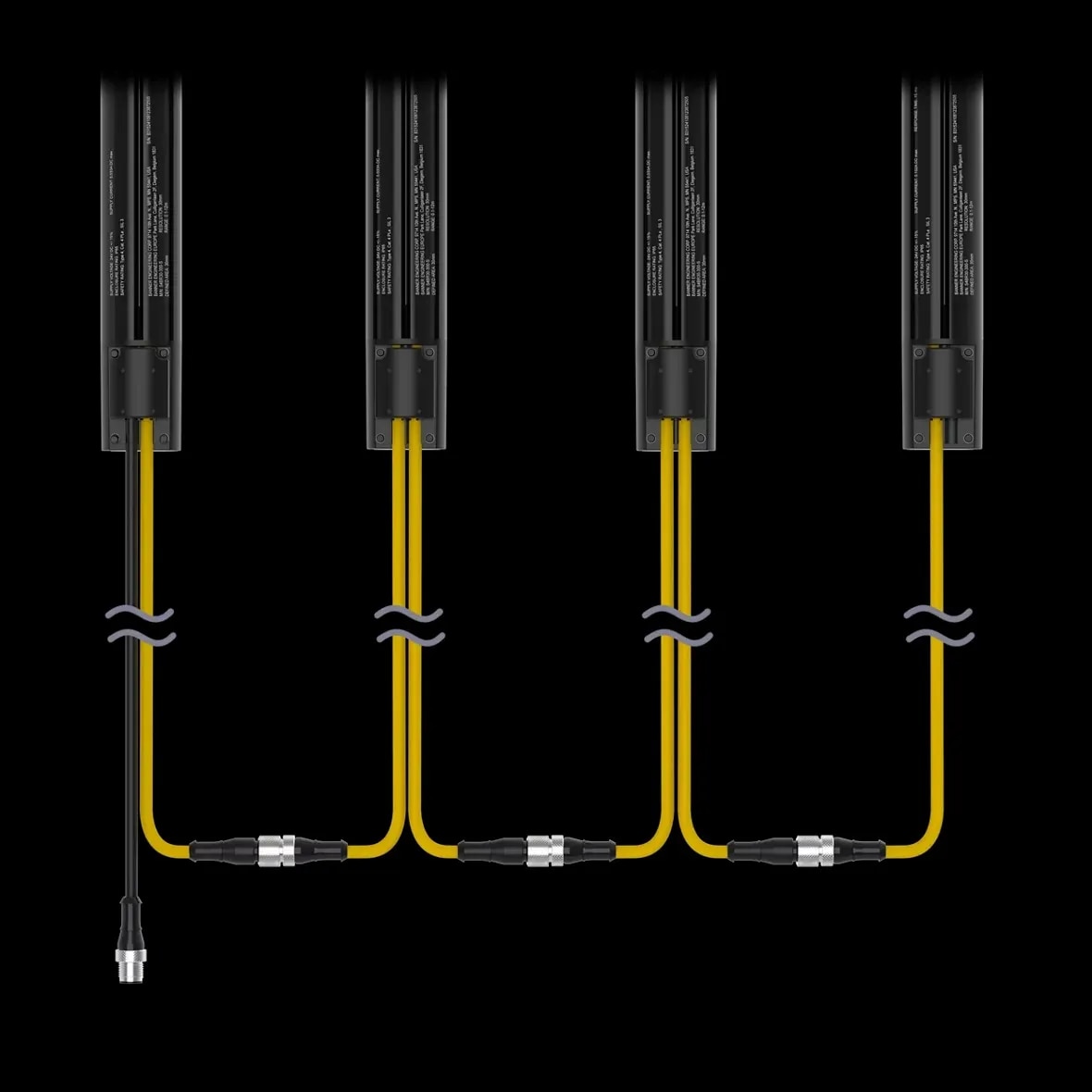

Optimized auto cascade saves installation and setup time

Reduced resolution ignores one blocked beam to reduce nuisance trips while maintaining safety, and is ideal for material feed applications

Configurable I/O pin can be used for IO-Link® control; or for auxiliary output or override input that communicates additional status that allows mirroring of system or machine status, communicating light curtain status to another device, and faster response to conditions such as muting or reset required

Specially designed cordsets simplify installation and maintenance

Defined area options provide perimeter detection from small production stations to large machine cells

Zone indication and weak beam strength indicators reduce commissioning time and help identify maintenance needs

Muting and fixed blanking accessories refine system design and installation

IO-Link diagnostics logs last 10 faults in persistent memory, provides measurement output in applications such as open box detection or pallet height, and offers advanced indication control of up to nine user-defined states for matching custom machine indicator standards

End mount and side mount brackets enable greater installation flexibility
