What Is an Indexing Plunger?
An Indexing Plunger is a mechanical device used to lock, position, or index a component at a specific point. It consists of a plunger pin that moves in and out, allowing parts to align or lock securely.
These plungers are widely used when equipment requires repetitive positioning with high accuracy—for example, machine tables, rotating fixtures, medical equipment, packaging machines, and many automated assemblies.
Key Functions of Indexing Plungers
- Locking in a fixed position
- Accurate indexing of moving parts
- Preventing movement during machining or assembly
- Safe and repeatable part alignment
- Providing ergonomic manual control
How Does an Indexing Plunger Work?
The working principle of an indexing plunger is simple yet highly effective.
1. Actuator Operation – Pull or Push
The working cycle begins when the operator or machine initiates the movement:
- In pull-type plungers, you pull the knob or ring.
- In push-type plungers, you press the actuator button.
This action temporarily disengages the plunger from its locked position.
2. Spring Compression & Pin Retraction
Inside the indexing plunger is a high-strength compression spring.
When the knob is pulled or pushed:
- The spring compresses.
- The plunger pin retracts completely into the housing.
- The locking pin is now free from the indexing hole.
This allows the machine component to move freely without obstruction.
3. Component Movement to the Next Position
- The fixture or machine part (like a sliding rail, rotating table, moving plate, etc.) can shift to the desired point.
- There is no resistance or locking force during this movement.
- This ensures smooth, frictionless repositioning.
4. Automatic Locking on Release
- The compressed spring expands.
- The plunger pin moves forward automatically.
- The pin enters the next indexing hole or slot.
- The mechanism locks the part firmly into position.
This automatic re-engagement is what makes indexing plungers highly dependable for repetitive operations.
5. Achieving Accurate & Repeatable Alignment
- The component is accurately aligned
- Positioning becomes repeatable
- Zero room for misalignment or drift
- Ideal for high-precision industrial setups

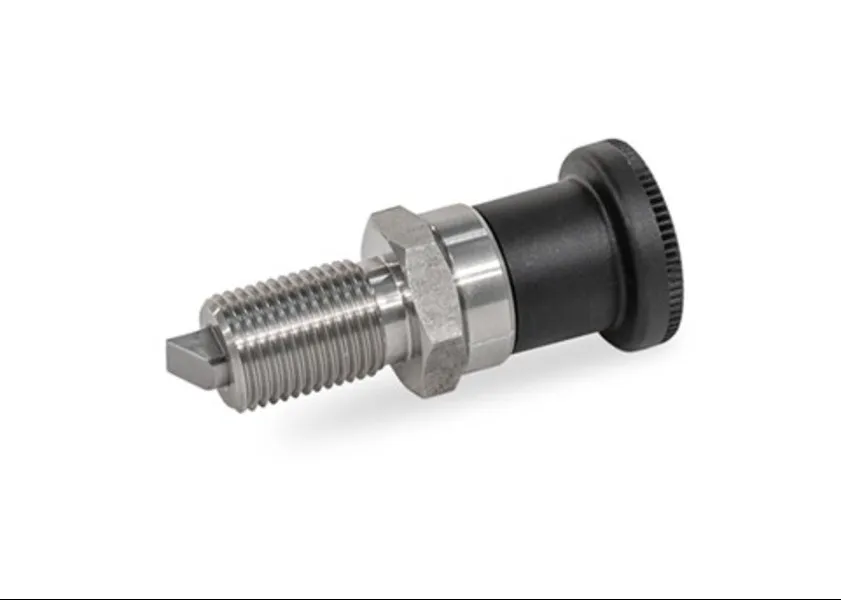

Model No : GN 617, GN 717, GN 615, GN 615.1, GN 615.4
Industrial Applications of Indexing Plungers
Indexing plungers play a crucial role in modern industrial mechanisms where precise locking, accurate positioning, and smooth adjustment are essential. Due to their simple yet robust design, they are widely used across multiple industries to ensure machine stability, repeatability, and operator safety.
1. Automation & Machinery Positioning
Indexing plungers are extensively used in automated machines to achieve:
- Accurate stopping positions
- Repeatable alignments
- Quick adjustments during changeovers
2. Material Handling Equipment
For equipment that requires continuous movement and controlled locking, indexing plungers ensure:
- Safe locking of movable arms
- Height or angle adjustment
- Position fixing of guides and brackets
3. Automotive & Vehicle Manufacturing
Automotive assembly systems rely on indexing plungers for:
- Fixture positioning
- Jig locking
- Accurate alignment in welding and inspection tools
4. Food & Packaging Industry
Indexing plungers allow quick adjustments without tools and maintain hygiene standards.
- Used in packing lines, height adjustment of guides, format changeovers.
- Stainless-steel variants suitable for hygienic conditions.
5. Electronics & Semiconductor Industry
Used for high-precision equipment where micro-positioning is required:
- PCB assembly fixtures
- Inspection racks
- Tooling stations
6. Textile Machinery
Textile machines need frequent adjustments and locking points:
- Roller alignment
- Guide positioning
- Locking tensioning mechanisms
Advantages of Using Indexing Plungers
Indexing plungers are essential components in industrial machines, offering accuracy, safety, and smooth operation. Here are the key benefits that make them widely used in automation and mechanical systems:
✔ High Precision Positioning
Indexing plungers help achieve accurate, repeatable positioning. The pin aligns perfectly with the indexing hole, ensuring consistent machine settings every time.
✔ Enhanced Operator Safety
They prevent unintended or accidental movement of mechanical parts. This ensures the operator can work confidently without worrying about sudden shifts.
✔ Smooth & Controlled Operation
Most indexing plungers come with ergonomic knobs or handles that provide comfortable manual control. This makes locking and unlocking effortless.
✔ Durable & Long-Lasting Design
Manufactured from high-strength steel and corrosion-resistant materials, indexing plungers deliver long service life even in demanding industrial environments.
✔ Wide Application Compatibility
From automation setups to jigs & fixtures, conveyors, packaging machines, and positioning devices — indexing plungers fit seamlessly into multiple machine types.
Why Choose Indexing Plungers from Genesis Technomation India Pvt. Ltd.?
At Genesis Technomation India Pvt. Ltd., we supply a complete range of industrial automation parts, including:
- High-precision indexing plungers
- Robust mechanical locking elements
- Sensors (SICK, Photoelectric, Ultrasonic, etc.)
- Stepper motors & planetary gearboxes
- VFDs & Servo Drives
- Robotics components
FAQs – Indexing Plungers
1. What is an indexing plunger?
An indexing plunger is a mechanical device used to lock and position machine parts at fixed intervals.
2. Where are indexing plungers used?
They are used in CNC machines, automation systems, packaging machinery, robotics, and jigs & fixtures.
3. What are the types of indexing plungers?
Standard, locking, non-locking, pull knob, spring plungers, stainless steel, and flanged plungers.
4. How does an indexing plunger work?
A spring-loaded pin engages into a hole, locking the component in position until manually retracted.
5. Why choose Genesis Technomation indexing plungers?
Premium quality, high durability, fast delivery, and multiple variants for industrial use.
