Looking for a compact and reliable planetary reducer for high-performance servo motion control applications?

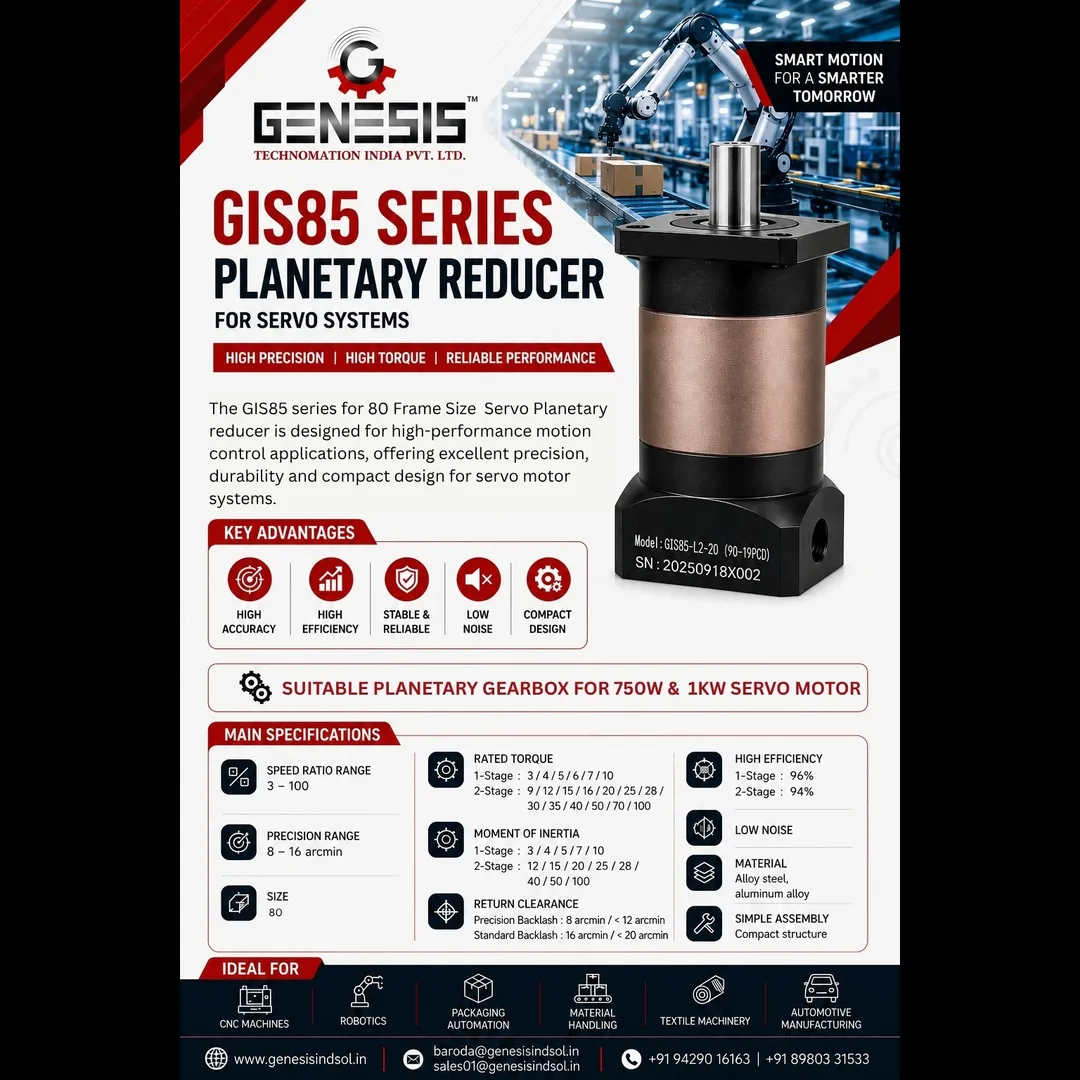

Introducing the GENESIS GIS85 Series Planetary Reducer, designed for servo systems requiring high precision, high torque, efficient power transmission, and compact construction. With a wide range of reduction ratios and low-backlash options, the GIS85 Series is suitable for demanding industrial automation applications.
🔹 Key Specifications
✅ Frame Size: 80 mm
✅ Speed Ratio Range: 3–100
✅ Precision Range: 8–16 arcmin
✅ Available Ratios: 3:1 to 100:1
✅ 1-Stage Ratios: 3 / 4 / 5 / 7 / 10
✅ 2-Stage Ratios: 9 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
✅ High Efficiency: 96% (1-stage) | 94% (2-stage)
✅ Return Clearance: Precision backlash 8 arcmin / <12 arcmin; Standard backlash 16 arcmin / <20 arcmin
✅ Material: Alloy steel & aluminum alloy
✅ Low Noise: Smooth and reliable operation
✅ Design: Compact structure & simple assembly
🔹 Suitable Servo Motor Applications
⚙️ Suitable Planetary Gearbox for 750W & 1kW Servo Motors
🔧 Key Applications
* ⚙️ CNC Machines – Precise positioning and motion control
* 🤖 Robotics & Automation – Accurate and reliable motion transmission
* 📦 Packaging Automation – High-speed repetitive motion and positioning
* 🏭 Material Handling – Reliable torque transmission in automated systems
* 🧵 Textile Machinery – Smooth servo-driven machine movement
* 🚗 Automotive Manufacturing – Precision motion for automated production lines
Why Choose GENESIS GIS85?
The GIS85 Series Planetary Reducer delivers an effective combination of high accuracy, high efficiency, low noise, reliable performance, and compact design, making it a strong solution for servo-based industrial automation and motion-control applications.
📩 Contact us for model selection, datasheets, pricing & application support.
